The A-4C32M5 is a 4-port USB 3.2 Gen2 hub designed for high-speed USB expansion with flexible power options. It features one Type-C 3.2 Gen2 upstream port and four Type-C 3.2 Gen2 downstream ports, supporting data rates up to 10Gbps. The hub can also support low-power devices without an external power supply.

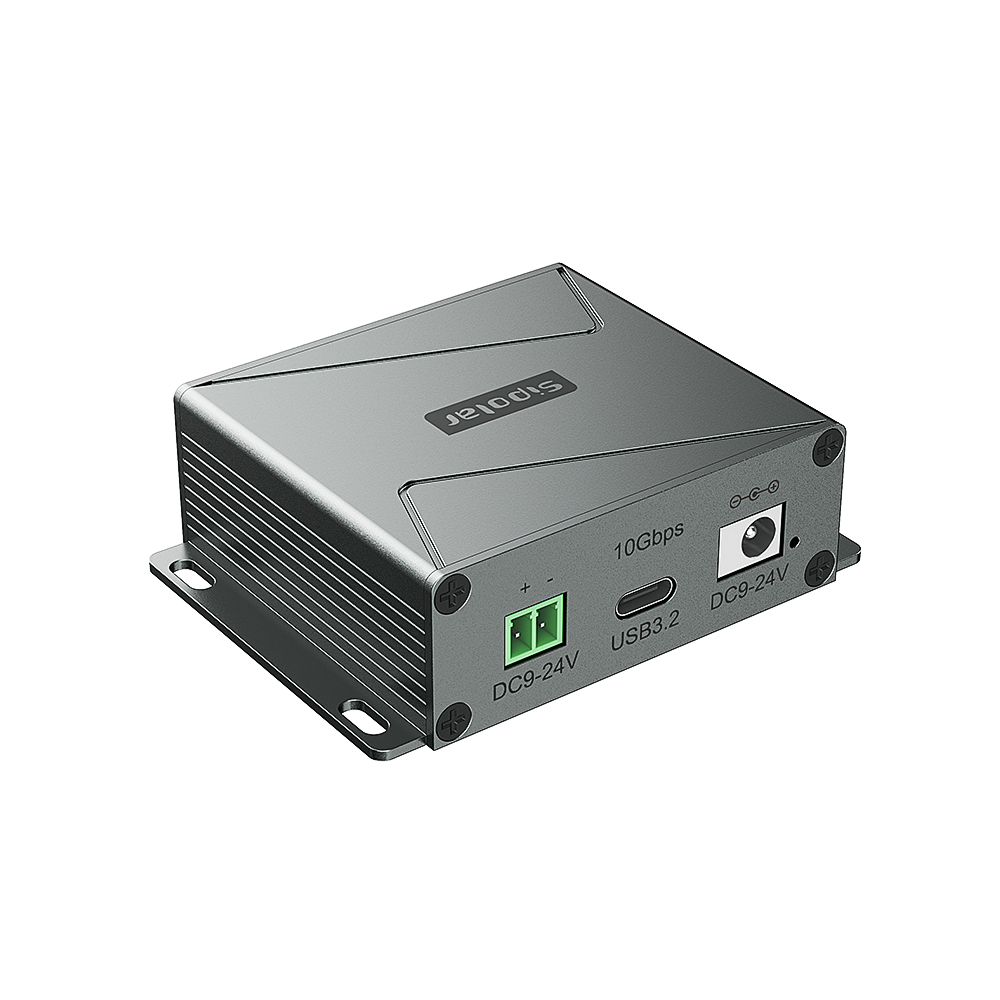

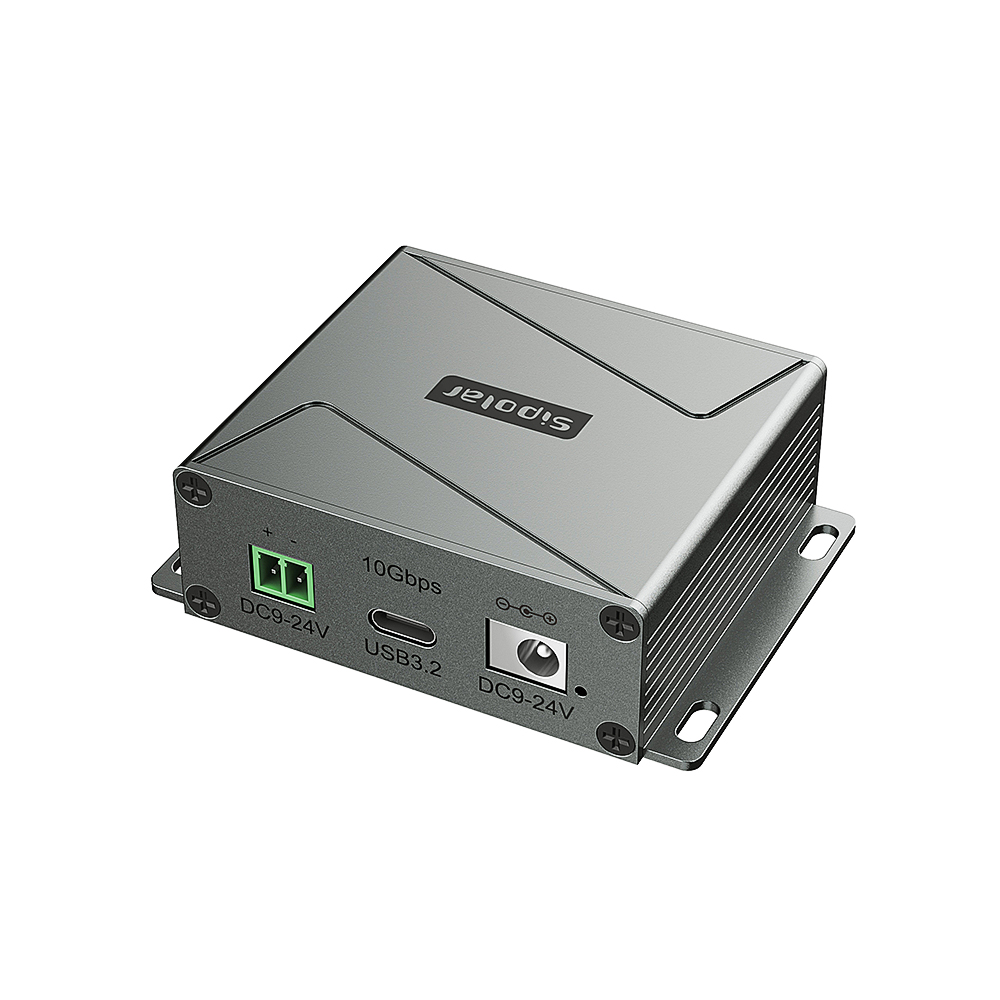

With two optional power input interfaces—DC 5.5×2.1mm and 3.81mm 2-pin terminal—either input may be selected according to the application. The aluminum alloy enclosure provides durability and good heat dissipation, while blue data and red power indicators make the operating status easy to see. Output overcurrent protection, short-circuit protection, and Class 4 ESD protection help ensure stable operation. The compact ear-mount design makes it suitable for flexible installation.

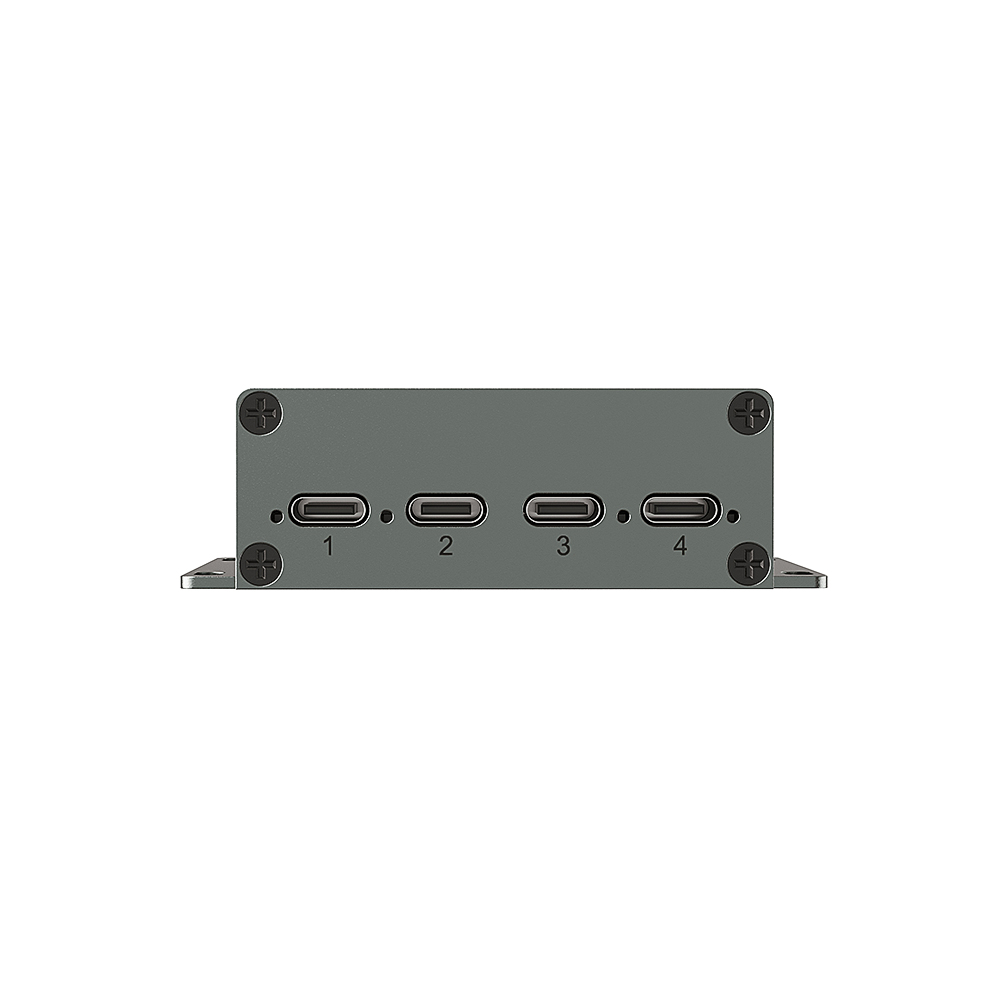

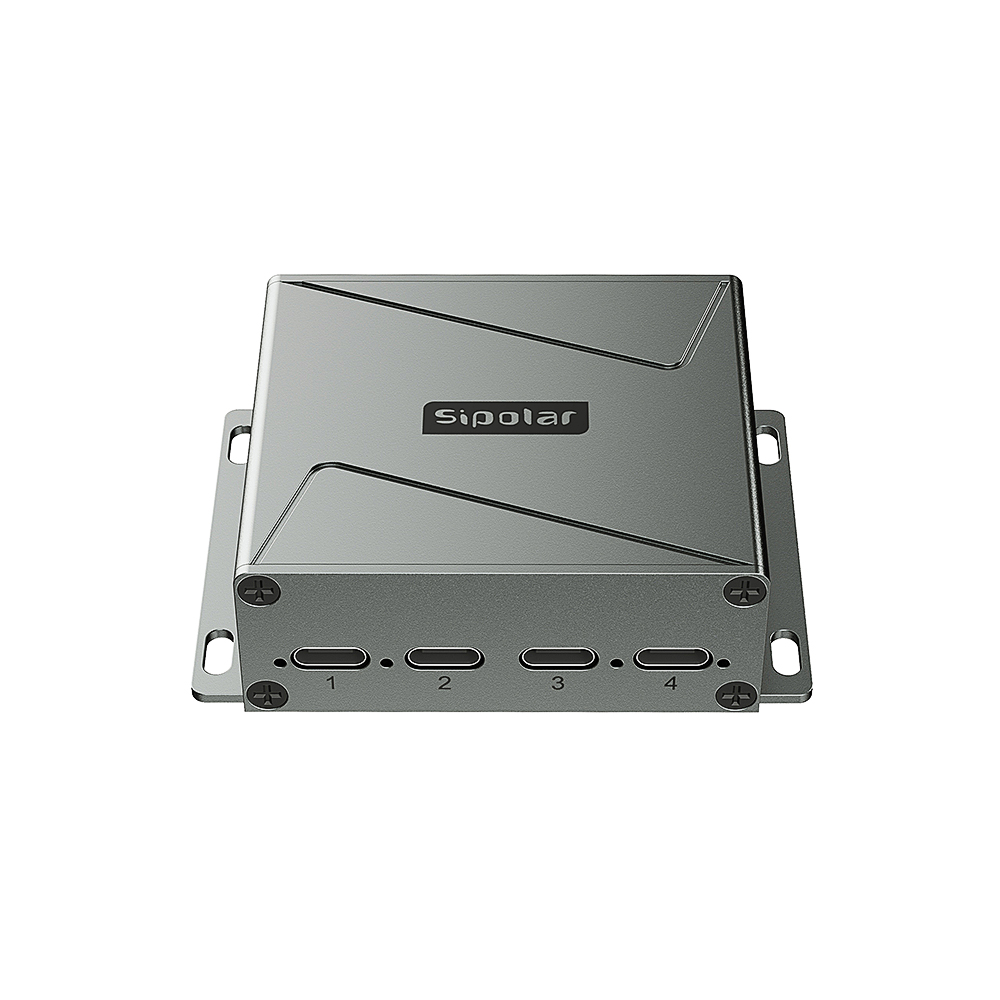

4-port USB 3.2 Gen2 hub with 1× Type-C 3.2 Gen2 upstream and 4× Type-C 3.2 Gen2 downstream ports
High-speed data transfer rate up to 10Gbps
Two optional power input ports: DC 5.5×2.1mm and 3.81mm 2-pin terminal; either input may be used
Wide DC input range: 9–24V
Per-port output: 5V/1A max; total power ≤20W
Output overcurrent protection and output short-circuit protection

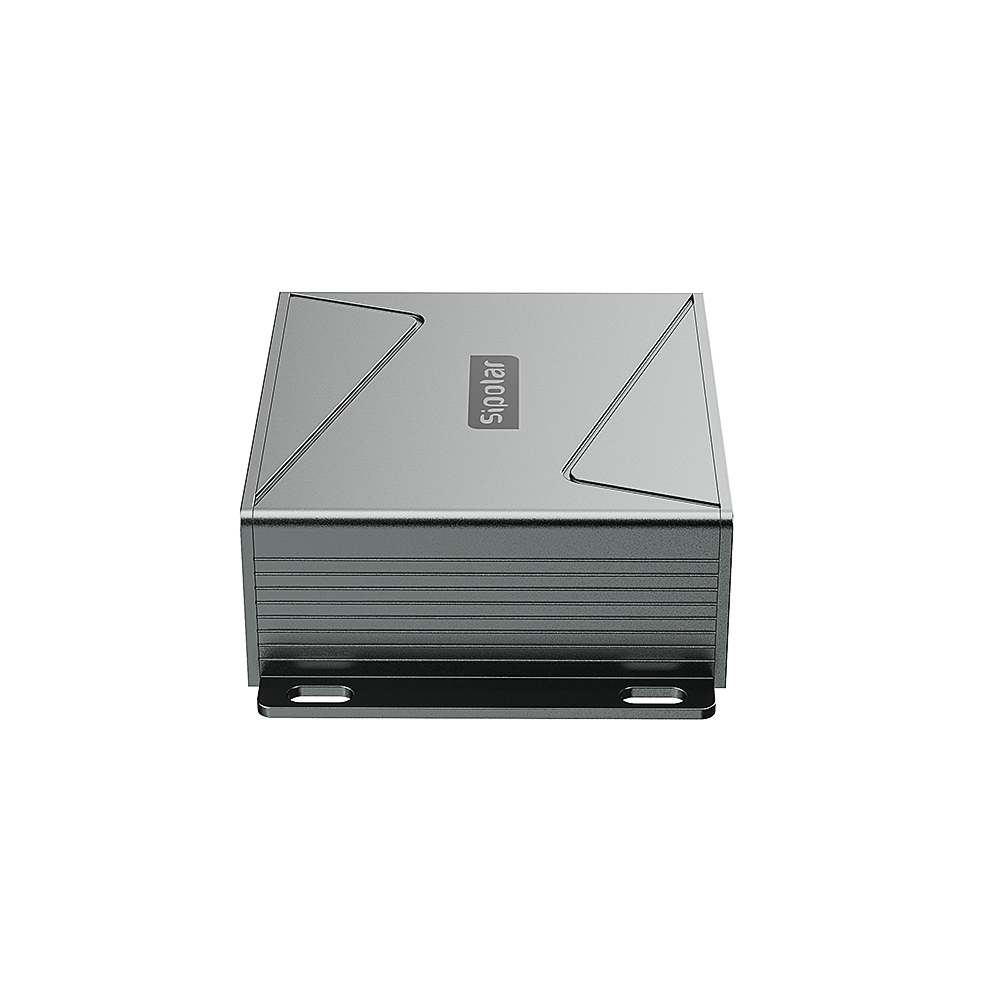

Aluminum alloy enclosure for durability and good heat dissipation
LED indicators: blue for data, red for power
ESD protection: Class 4, contact 8KV, air 15KV

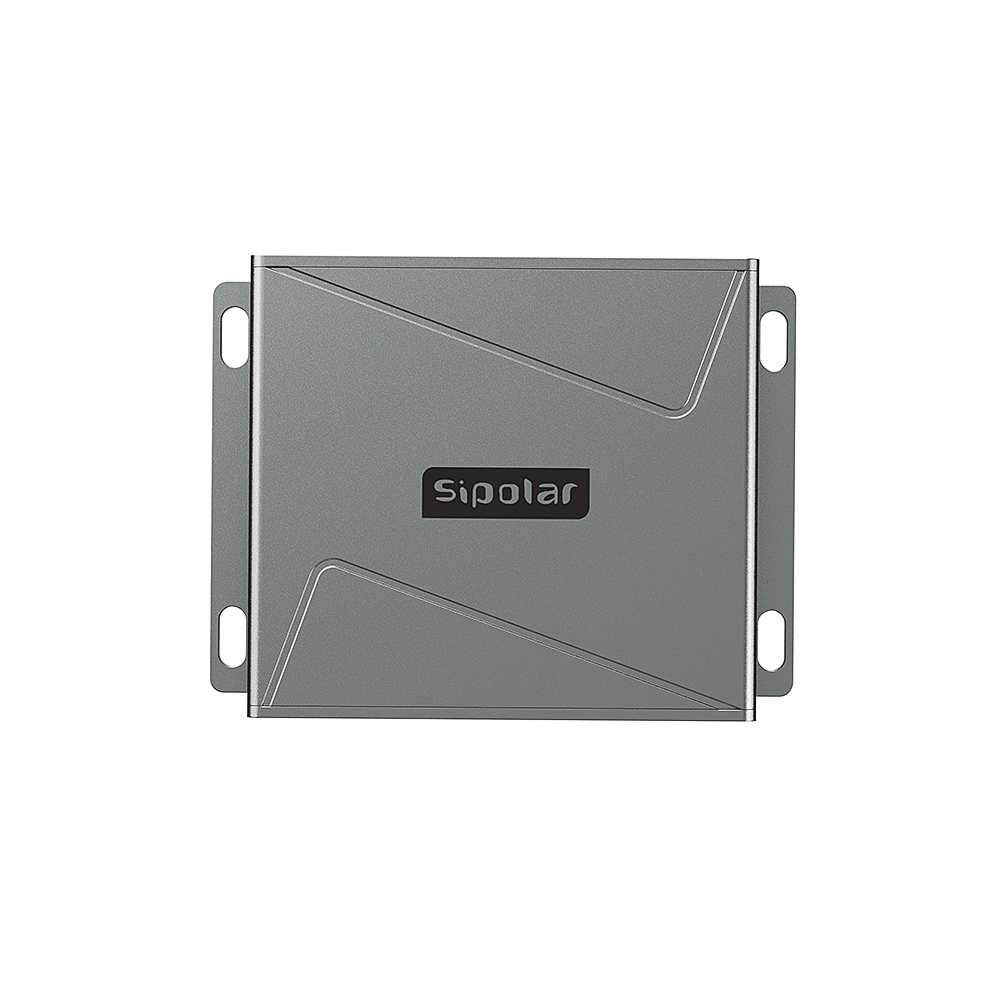

Compact ear-mount design for easy installation
Supports Windows 7/8/10/11 (x86 & x64), macOS 10.12 or later, Linux / Ubuntu 16.04 or later
Wide operating temperature: -25 to 80℃
Supports low-power devices without an external power supply
| Category | Item | Specification |
|---|---|---|
| Product Information | Product Name | 4-Port USB3.2 Gen2 Hub |
| Product Information | Model | A-4C32M5 |
| Product Information | PCB Version | V1.0 |
| Interfaces | Power Input | DC 5.5×2.1mm / 3.81mm 2-pin terminal (either input may be used) |
| Interfaces | Data Upstream | Type-C 3.2 Gen2 |
| Interfaces | Data Downstream | Type-C 3.2 Gen2 ×4 |
| Performance | Transfer Rate | Maximum 10Gbps |
| Electrical | Input Voltage | DC 9–24V |
| Electrical | Output Rated Voltage | 5.0V ±5% |
| Electrical | Max Output Current per Port | 5V/1A |
| Electrical | Total Output Power | ≤20W |
| Protection | Output Protection | Overcurrent protection, short-circuit protection |
| Protection | ESD | Class 4: contact 8KV, air 15KV |
| Indicators | LED Status | Blue for data, red for power |
| System Support | OS Compatibility | Windows 7, Windows 8, Windows 10, Windows 11 (x86 & x64); macOS 10.12 or later; Linux / Ubuntu 16.04 or later |
| Environment | Operating Temperature | -25 to 80℃ |
| Environment | Operating Humidity | RH5%–RH90% |
| Environment | Operating Altitude | Up to 2 km above sea level |
| Physical | Dimensions | 78 × 58 × 24 mm |
| Physical | Material | Aluminum alloy |
| Physical | Mounting | Ear-mount |
