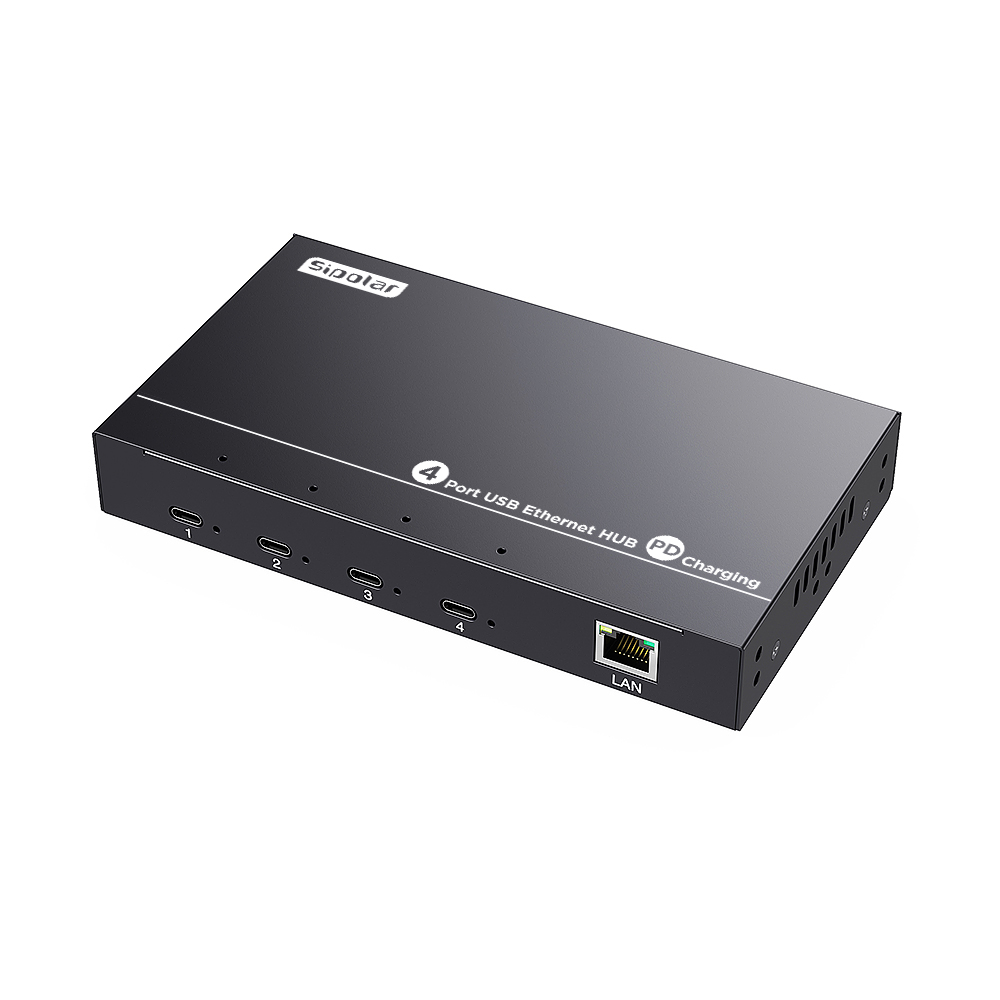

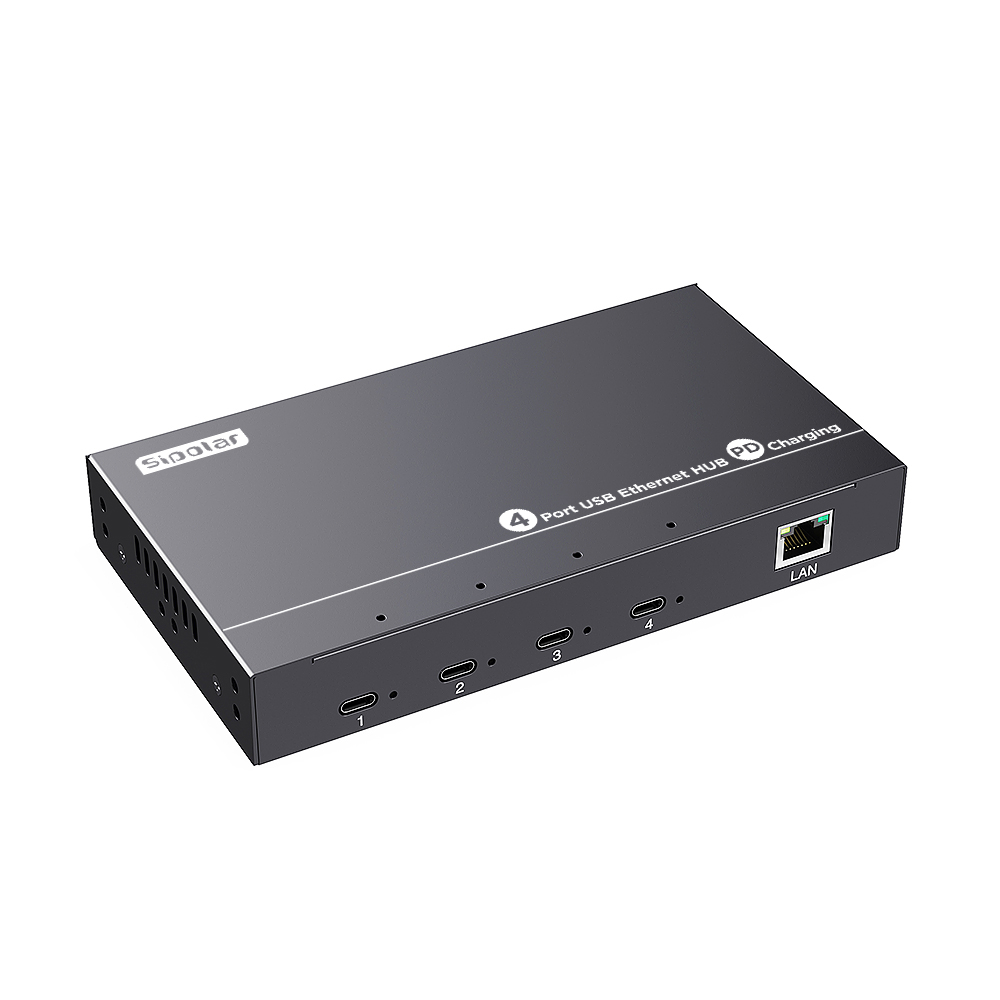

A-NET01 PD20W Fast Charging Networked USB Hub

The A-NET01 is a 4-port networked USB hub with PD fast charging, designed for wired networking and efficient charging of mobile terminals. It provides simultaneous wired internet access and 20W PD fast charging to each connected device via its four downstream Type-C ports. The RJ45 Ethernet input supports Fast Ethernet 10/100 Mbps auto-negotiation.

The hub supports PD3.0 output profiles of 5V/3A, 9V/2.22A, and 12V/1.67A, with up to 20W per port. It operates from a DC 12–24V input and includes a default 12V/7A power supply. Output short-circuit and overcurrent protection help ensure stable operation. LED indicators show power status, Ethernet link and data activity, and per-port charging status. The rugged cold-rolled steel enclosure with ventilation slots and ear-mount design makes it suitable for industrial sites, office environments, temporary networks, and other demanding installations.

• 4-port networked USB hub with PD fast charging

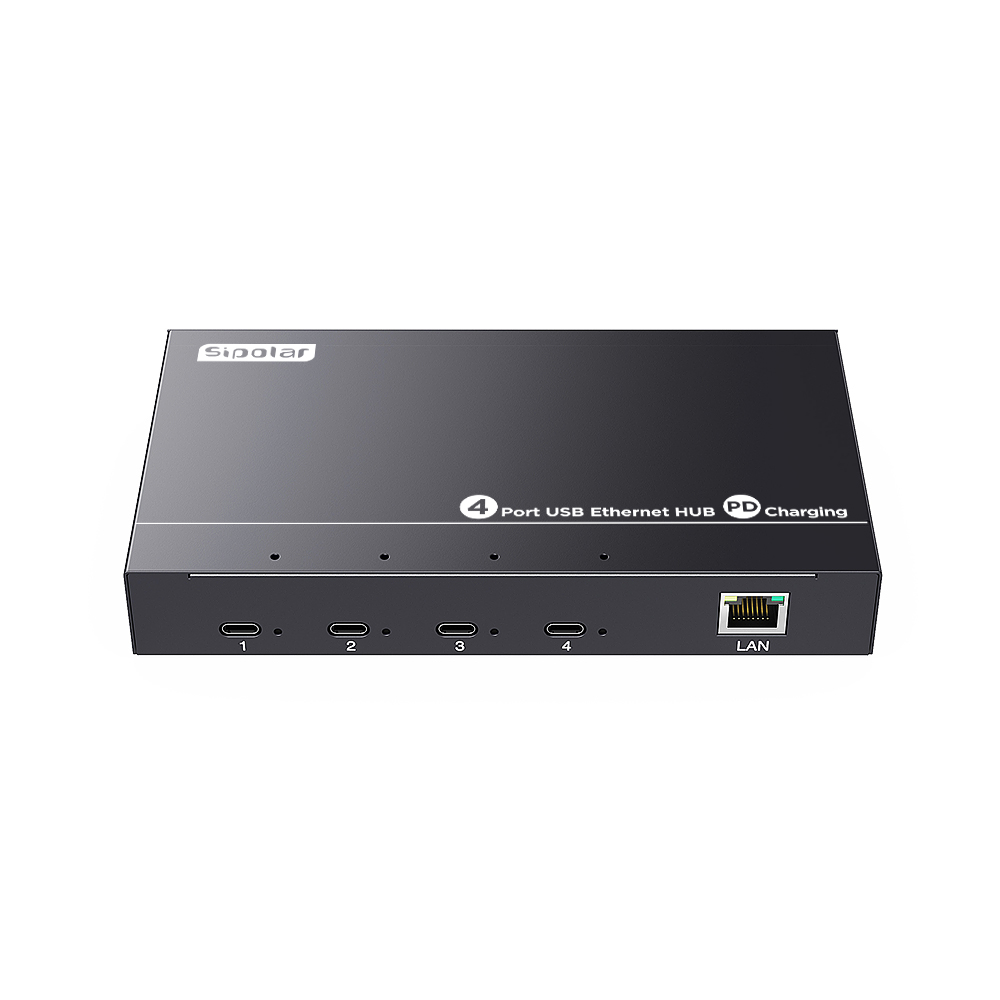

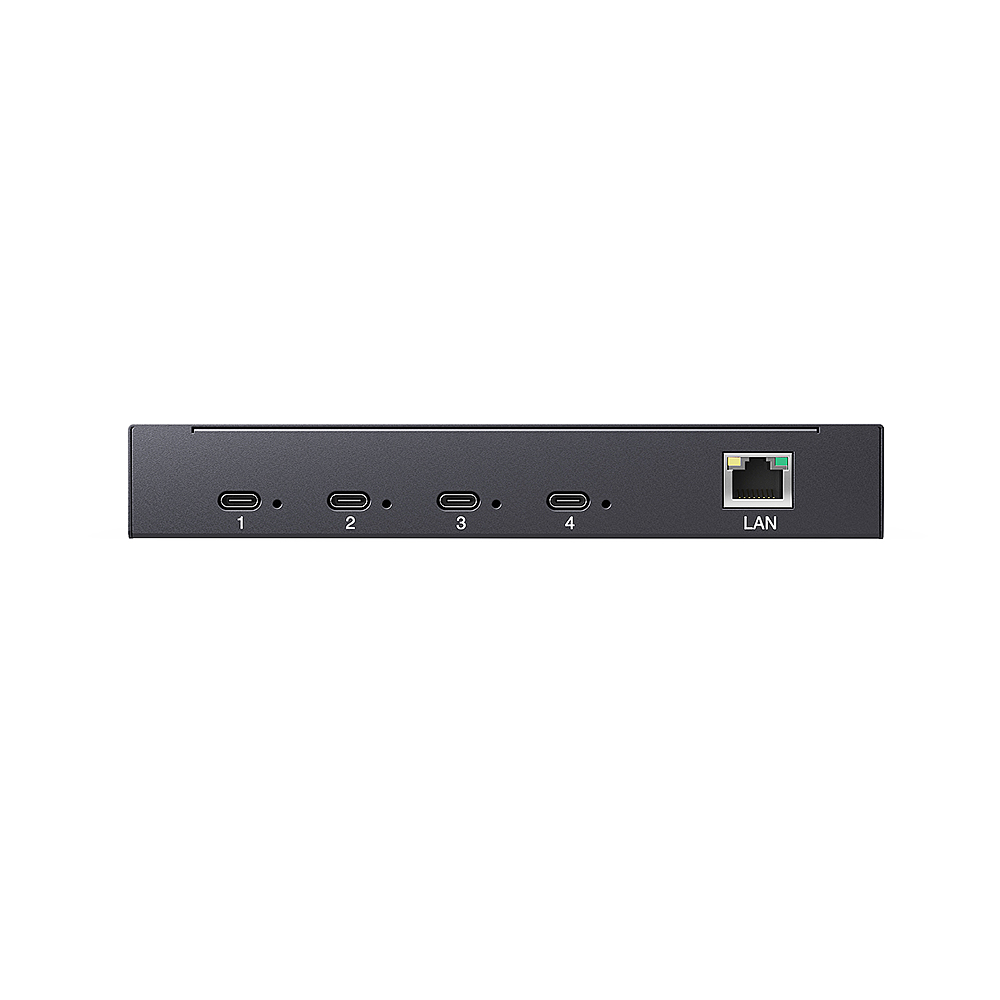

• 4× Type-C downstream ports for simultaneous wired network access and PD fast charging

• RJ45 Ethernet input with Fast Ethernet 10/100 Mbps auto-negotiation

• PD3.0 fast charging up to 20W per port: 5V/3A, 9V/2.22A, 12V/1.67A

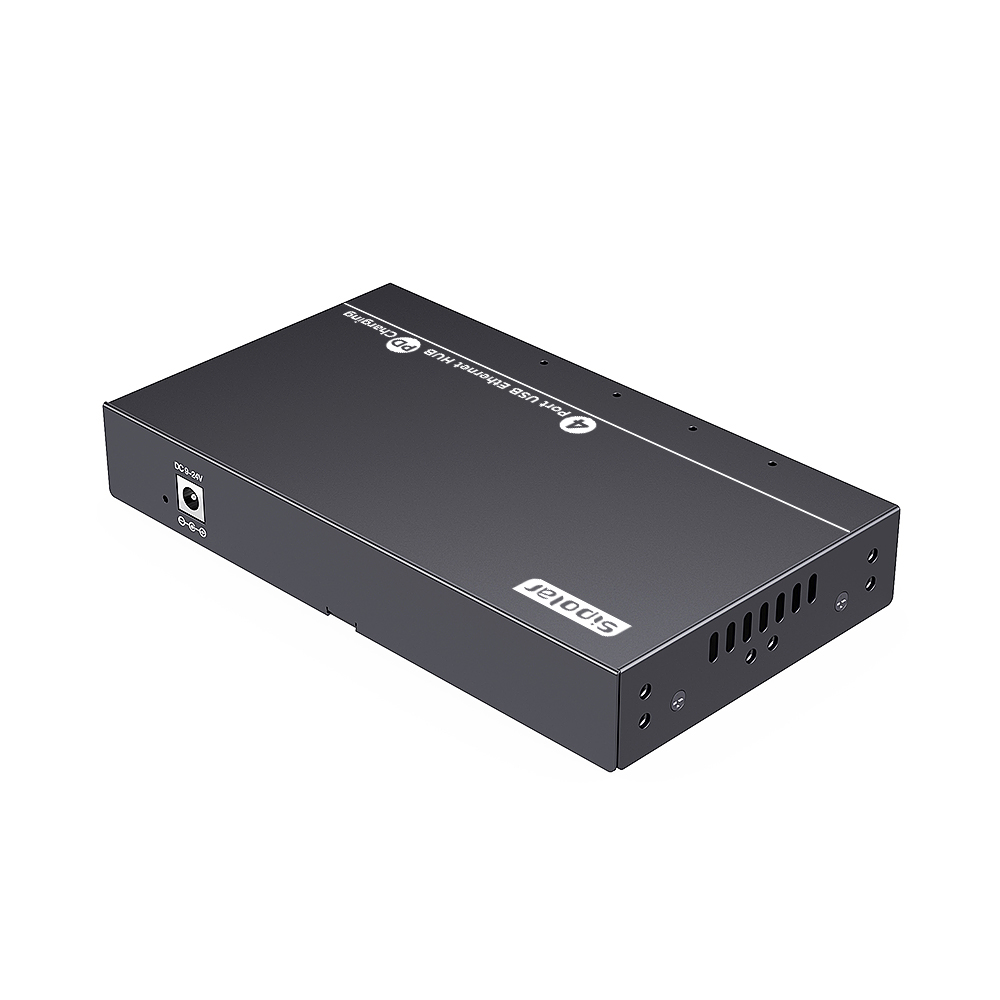

• Wide DC input range: 12–24V; default PSU: 12V/7A

• Output short-circuit protection and overcurrent protection

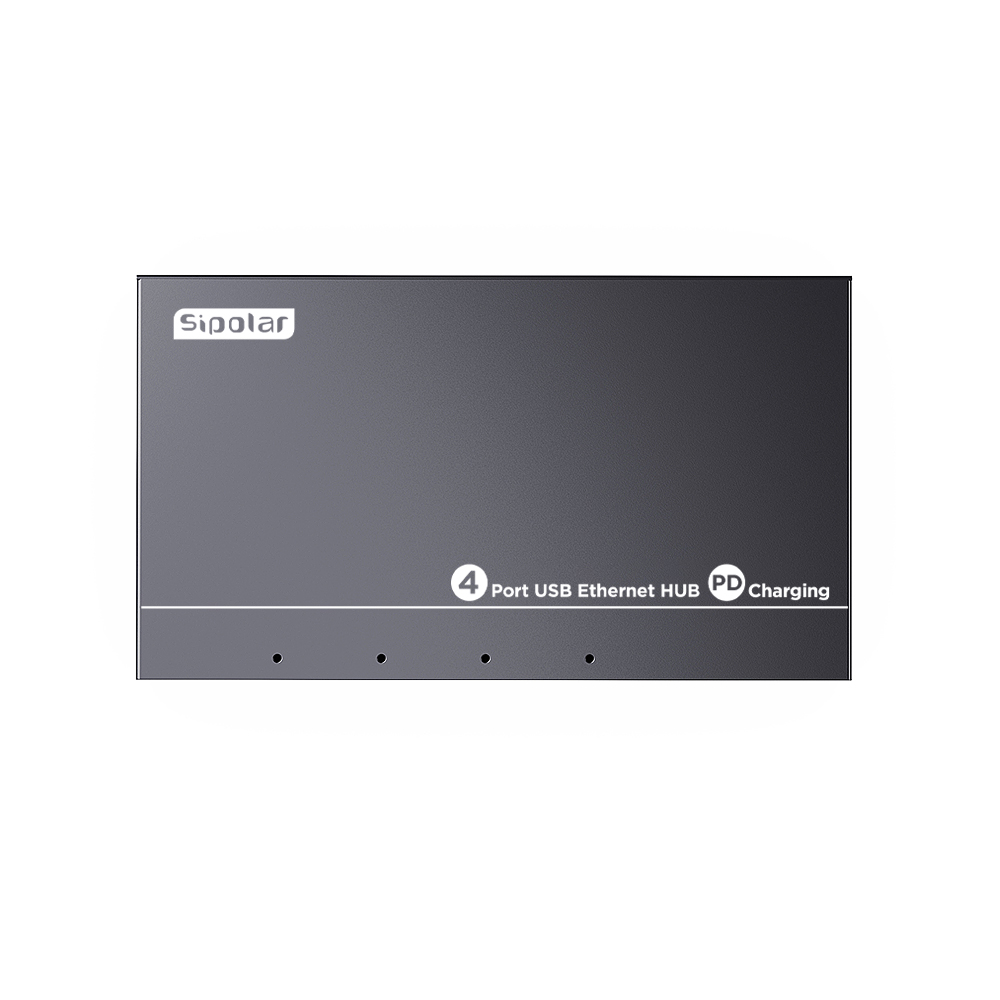

• LED indicators for power, Ethernet link/activity, and per-port charging status

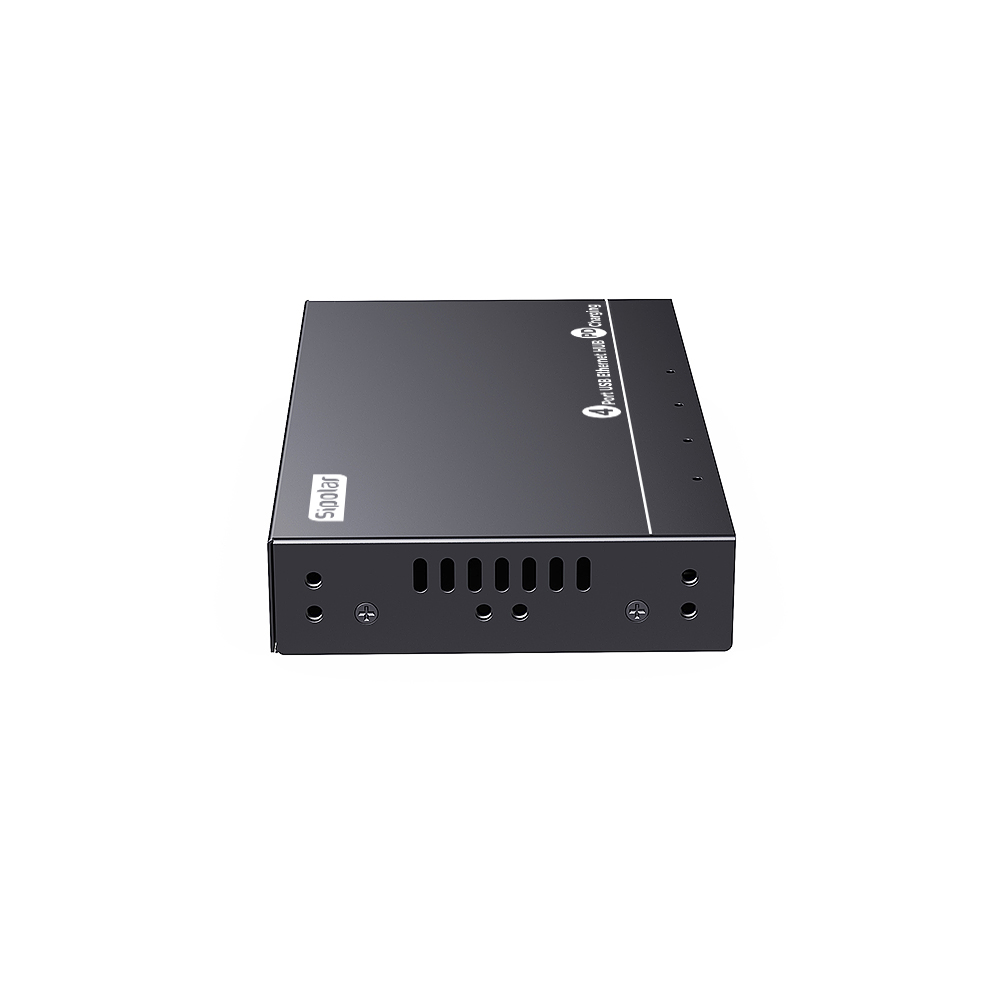

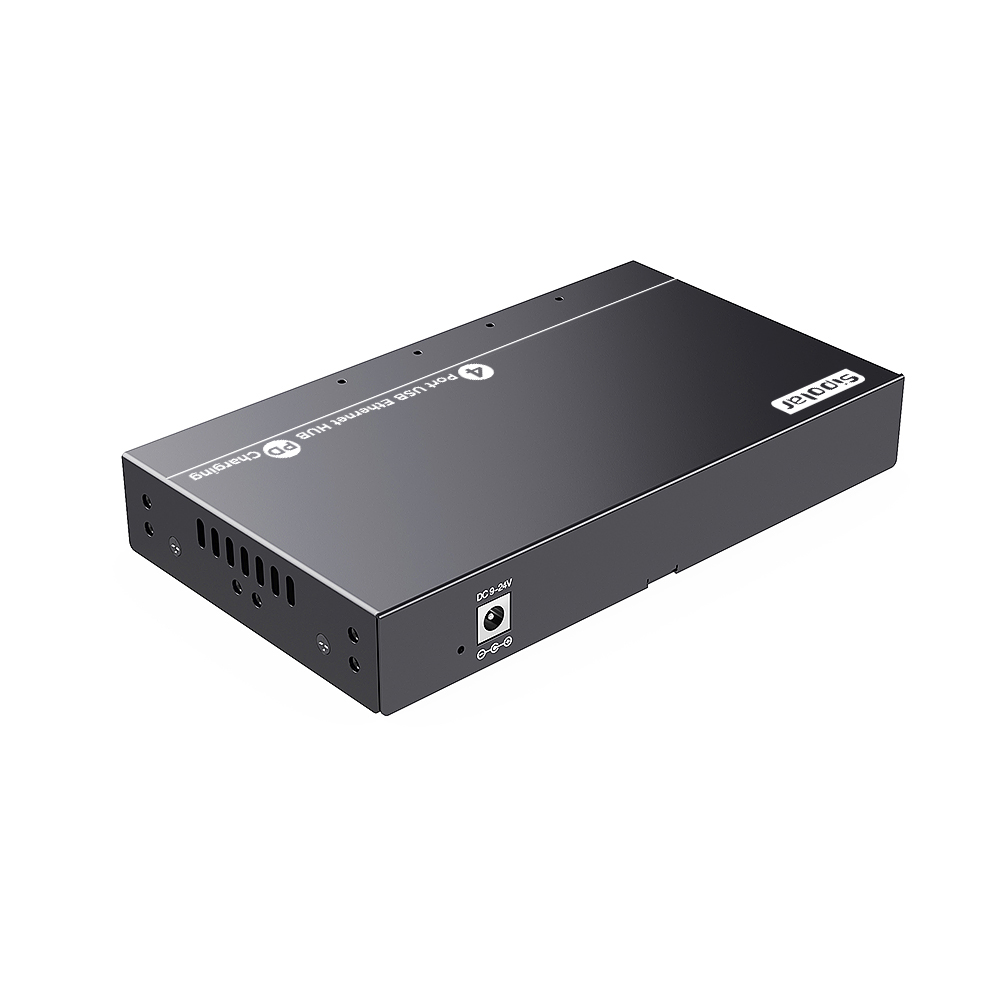

• Rugged cold-rolled steel enclosure with ventilation slots

• Ear-mount design for flexible installation

• Suitable for industrial sites, office environments, temporary networks, and more

• Wide operating temperature: -25 to 80℃
