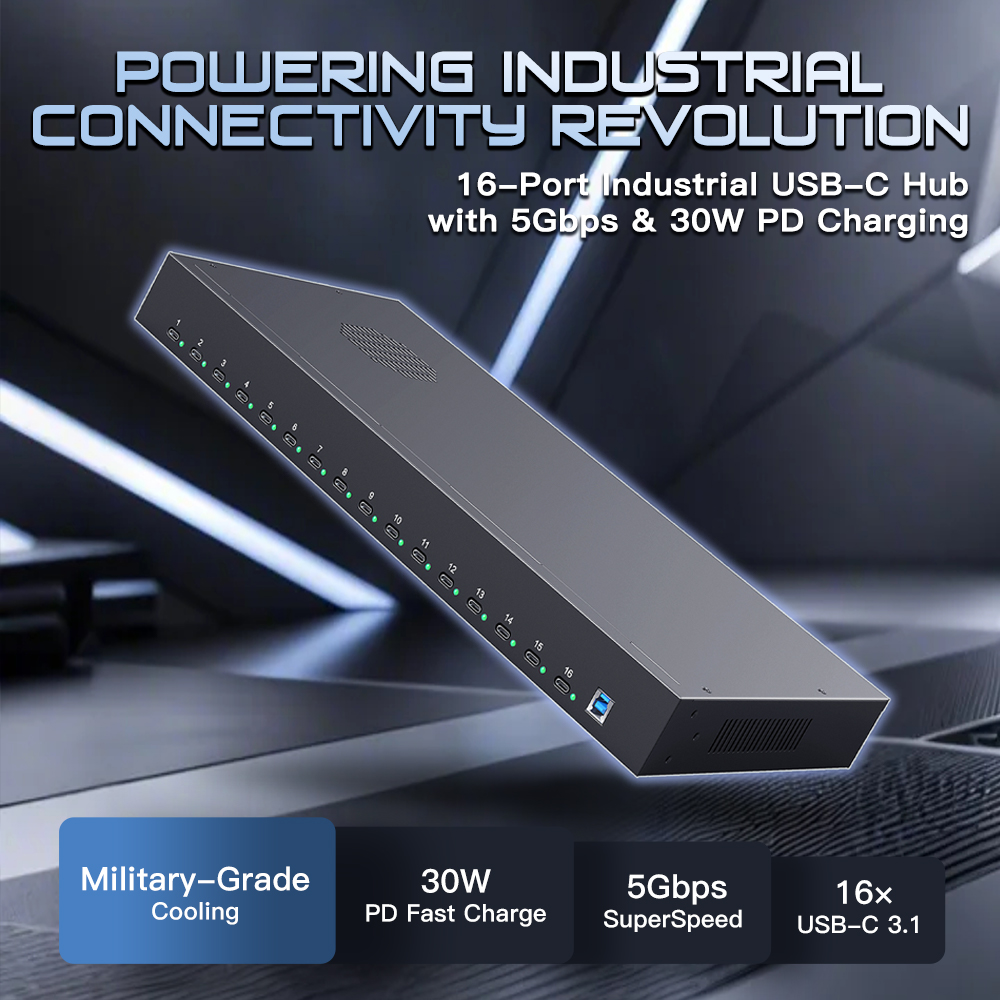

A-165CP 16-Port USB Charging Station charges and syncs up to PD3.0 5V/3A,9V/3A,12V/2.5A(30W) 16 tablets, smartphones and other USB-equipped devices at the same time. Recommended for schools, offices and other environments where multiple USB devices are used, this unit provides up to of power to each port—plenty for charging battery-intensive devices like the iPad®, iPod®, iPhone® and Android® tablets and smartphones. LED indicators signal the ports in use.
This 16-port charging station supports USB 3.0 data transfer rates up to 5GMbps and is backward compatible with previous USB generations. To keep up with current technology, a mini-USB firmware port enables software upgrades that allow the charging station to support newer devices.
In addition to charging, the A-165CP syncs any USB device using its compatible software—Apple® iTunes® or Apple Configurator, for instance. An included USB cable attaches to the unit’s USB-B port and the USB-A port on a computer for syncing purposes.

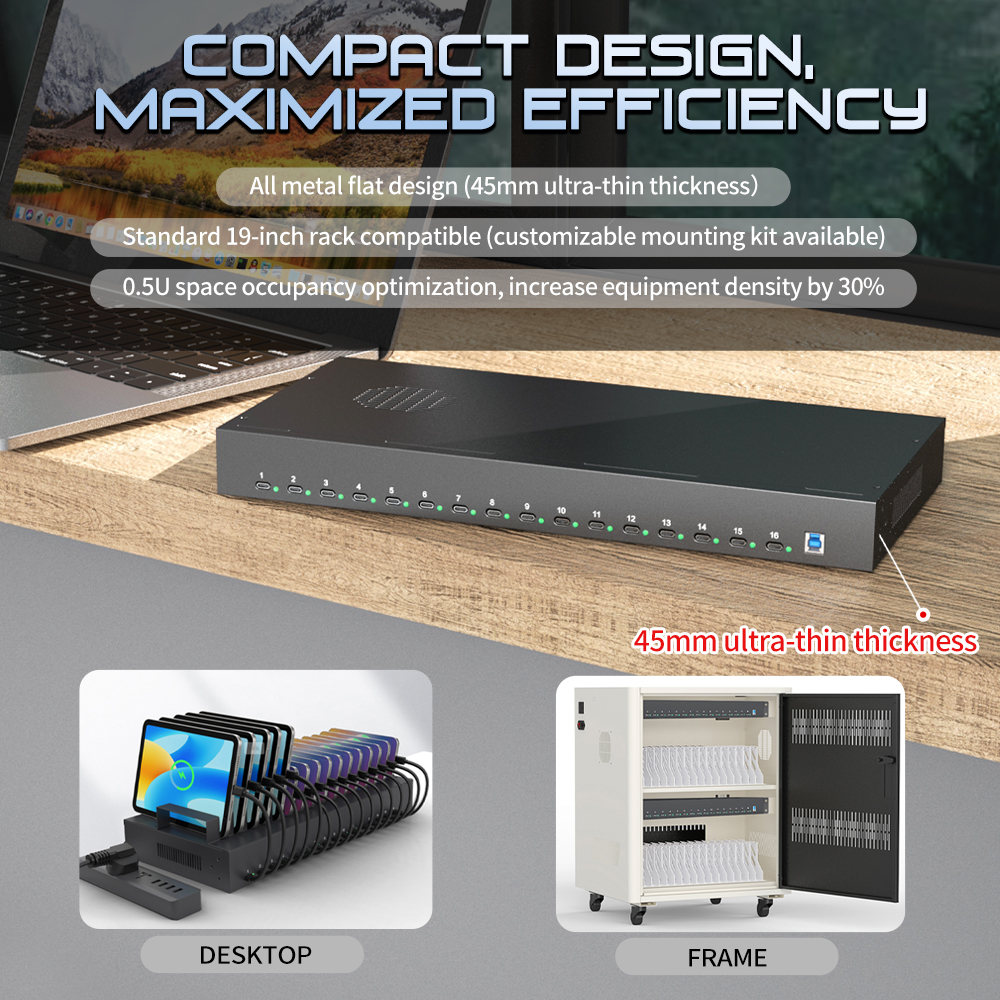

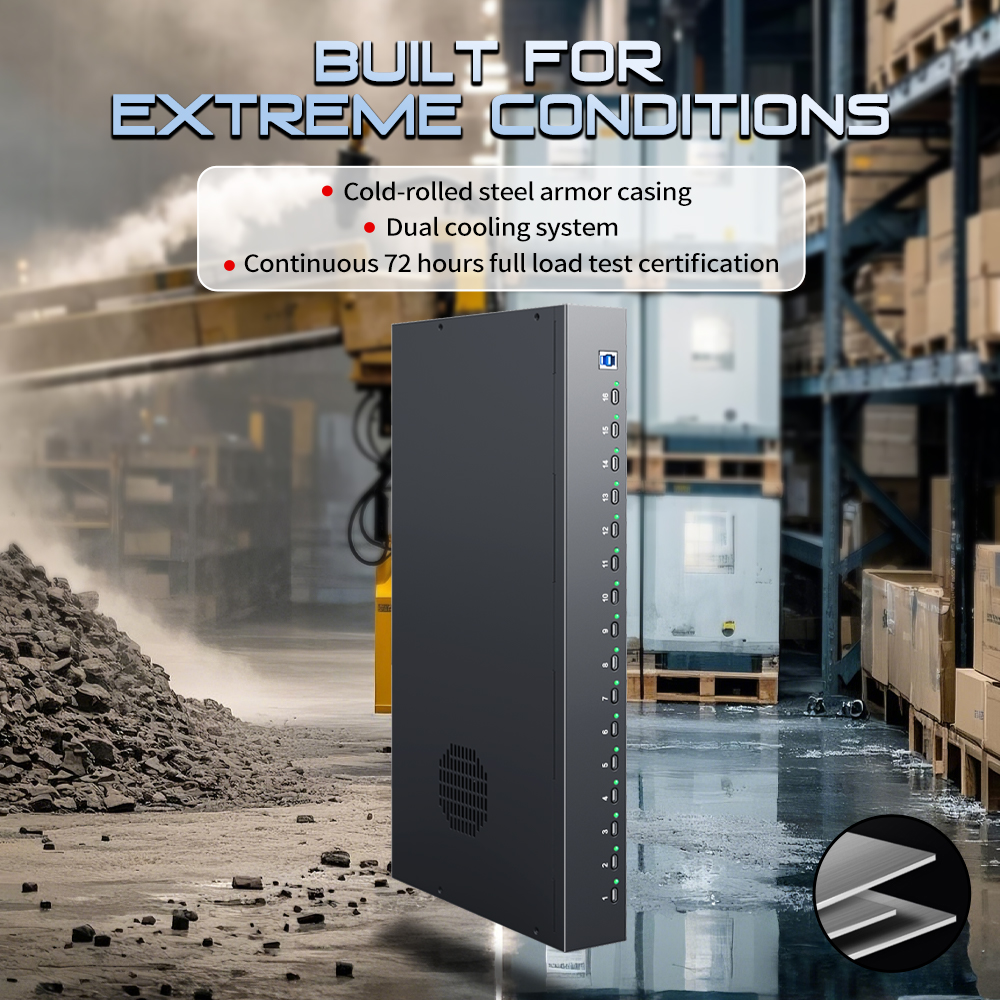

The durable steel housing mounts in 1U of an EIA-standard 19-inch rack using. The mounting bracket and be fixed in the 1U cabinet.
1U rack-mountable USB charger with integrated hub charges and syncs up to 16 tablets, smartphones and other mobile devices. Recommended for schools, offices and other environments where multiple USB devices are used.
Feature
*SIZE:440*204*45MM (+/-1mm)
*Built-in 24V 600W power supply built in.
*PD output profiles include: 5V 3A / 9V 3A / 12V 2.5A
* LED indicators: Intelligently detects the power current of each port and enables the port’s LED to
illuminate its corresponding color. (Charging in progress: red; Power On or Fully charged: green)
Support 5Gbps high speed data transmission.
*High-Power Fast Charging Features
Supports BC1.2, Apple, Samsung
Support PD2.0,PD3.0
Supports (Qualcomm) QC 2.0,QC3.0
Supports MTK PE+1.1 and MTK PE+2.0
Supports Huawel fast charge: FCP and SCP
Supports Samsung fast charge: AFC

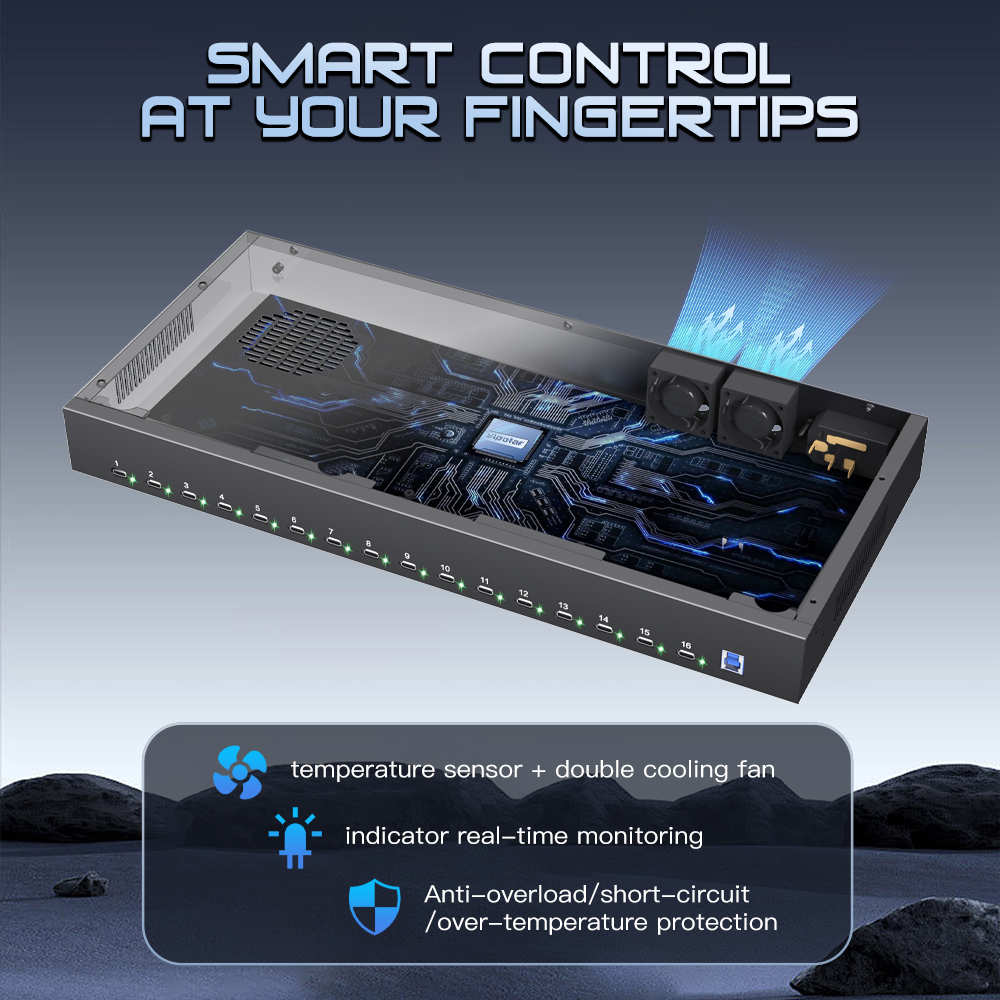

*Protection and Reliability for: Over-voltage, input under voltage, output short circuit, output over current, system over temperature.
* Certified Safe: CE,FCC,ROHS, certification ensure complete protection for you and your devices. Worldwide the input range is AC100-130V or AC200-230V.

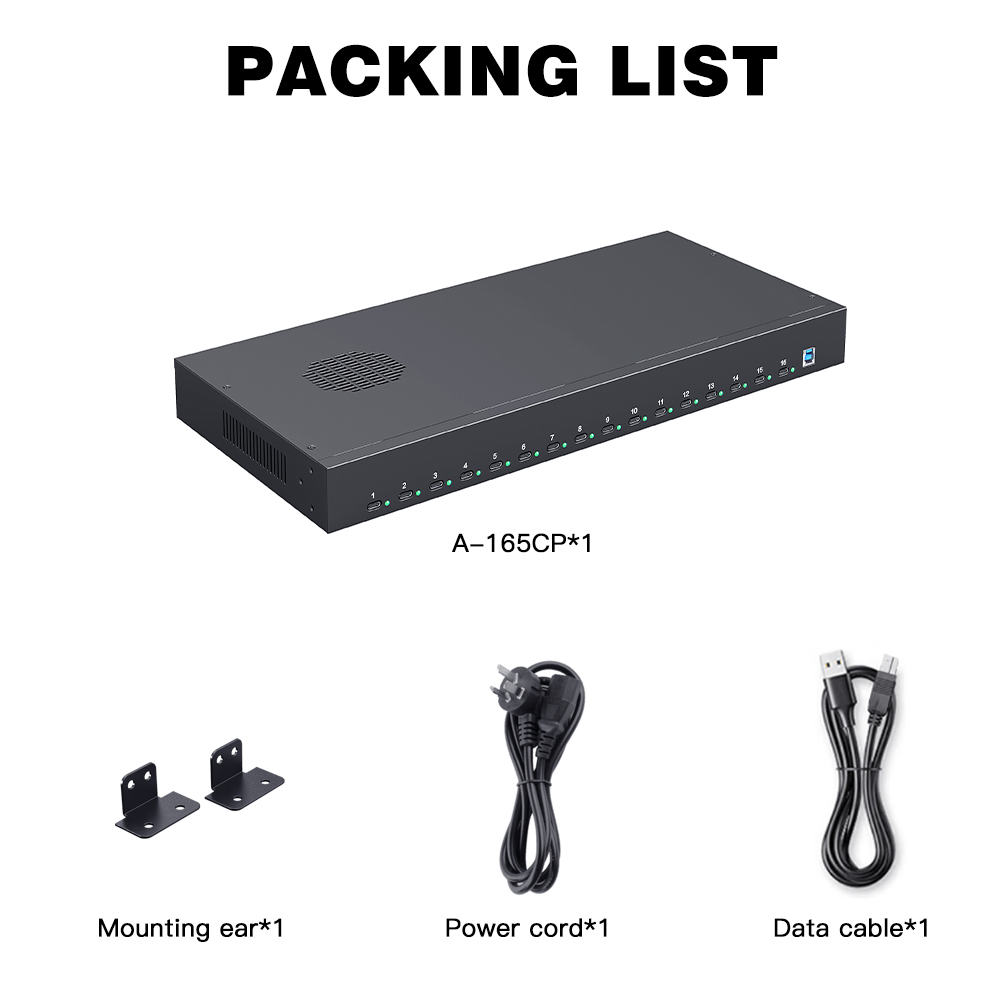

Package includes:
1.16 Ports 600W USB3.0 HUB*1
2.Power Cord* 1
3.Hanging ear *2
4. USB3.0 Data Cable*1
| Model | A-165CP |
Input |
|
Internal Power Supply Efficiency/ Voltage | 600W-24V |
Transfer Speed | Maximum Transfer Rate |
Output |
|
| |
3.Efficiency:VIN = 24V,VOUT = 5V/3A, Conversion Efficiency is 92% | |
Support TYPE-C Output And USB PD Protocol |
|
| |
| |
Output PD Specification | 1.Support Type-C PD Port Output |
| 2.Support BC1.2_DCP、Apple Protocol | |
| 3.Support Qualcomm QC2.0、QC3.0 | |
| 4.Support Huawei Fast Charging Protocol FCP | |
5.Support Samsung Fast Charging Protocol AFC(MAX 12V) | |
LED Charge Mode | Charging in progress: Red Color x 16 Power on or Fully charged: Green Color x 16 |
Output Over current Protection | Output Over current Protection:Output＞3.5~3.9A，USB port current output automatic disconnect |
Output Overvoltage Protection | When the output terminal voltage > 16V or more due to an accidental cause, the TVS discharge current on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port. |
Operating Temperature | -10+55℃,Power transmission above 45°C decreases by temperature rise. |
Working Humidity | 20～90%, RH,Non-Condensing |
Working Altitude | Less Than 2km |
Storage Temperature And Humidity | Temperature：-30～+80℃；Humidity：10～95% |
