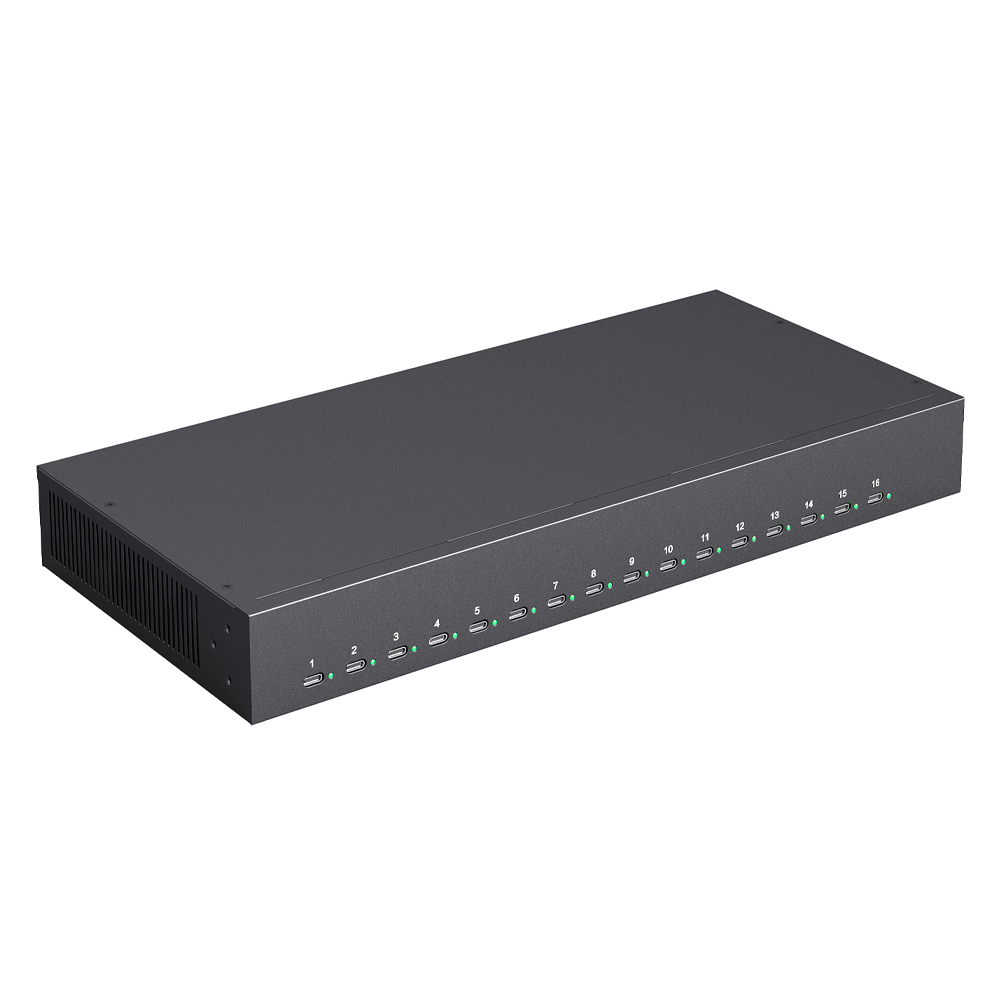

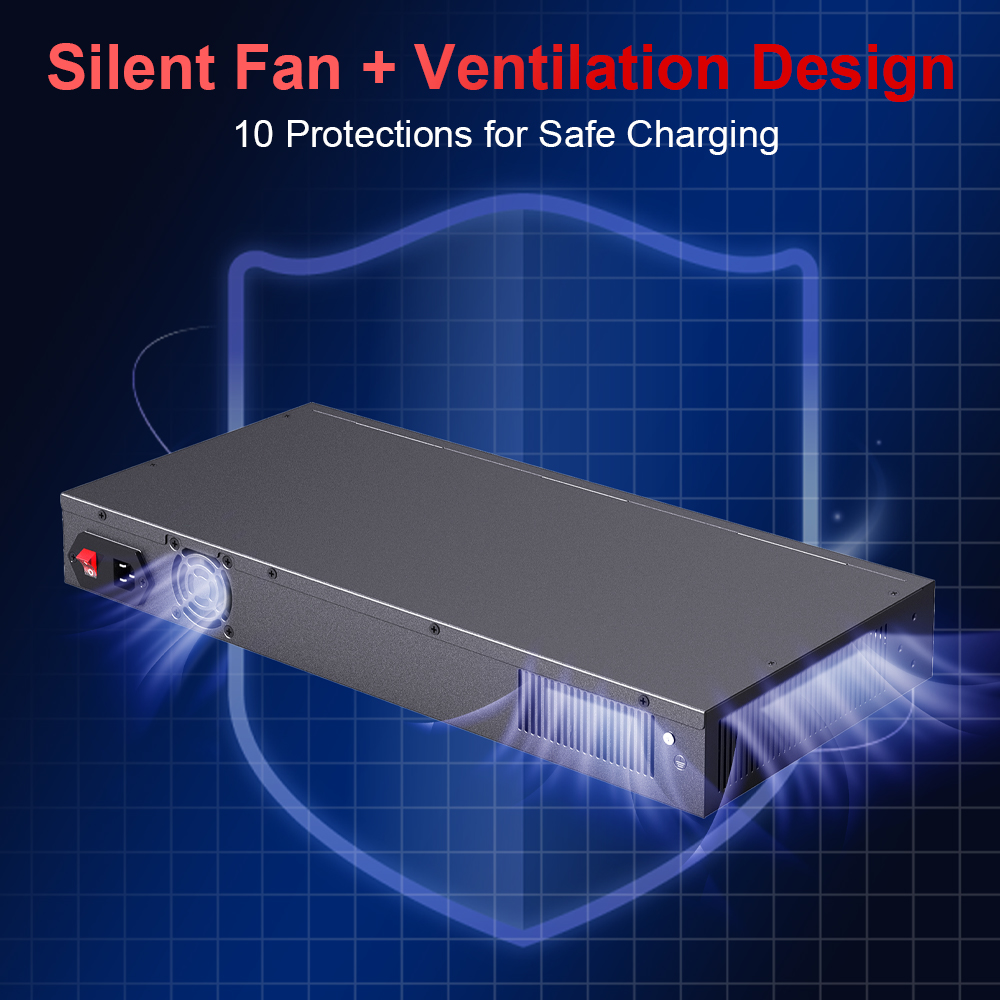

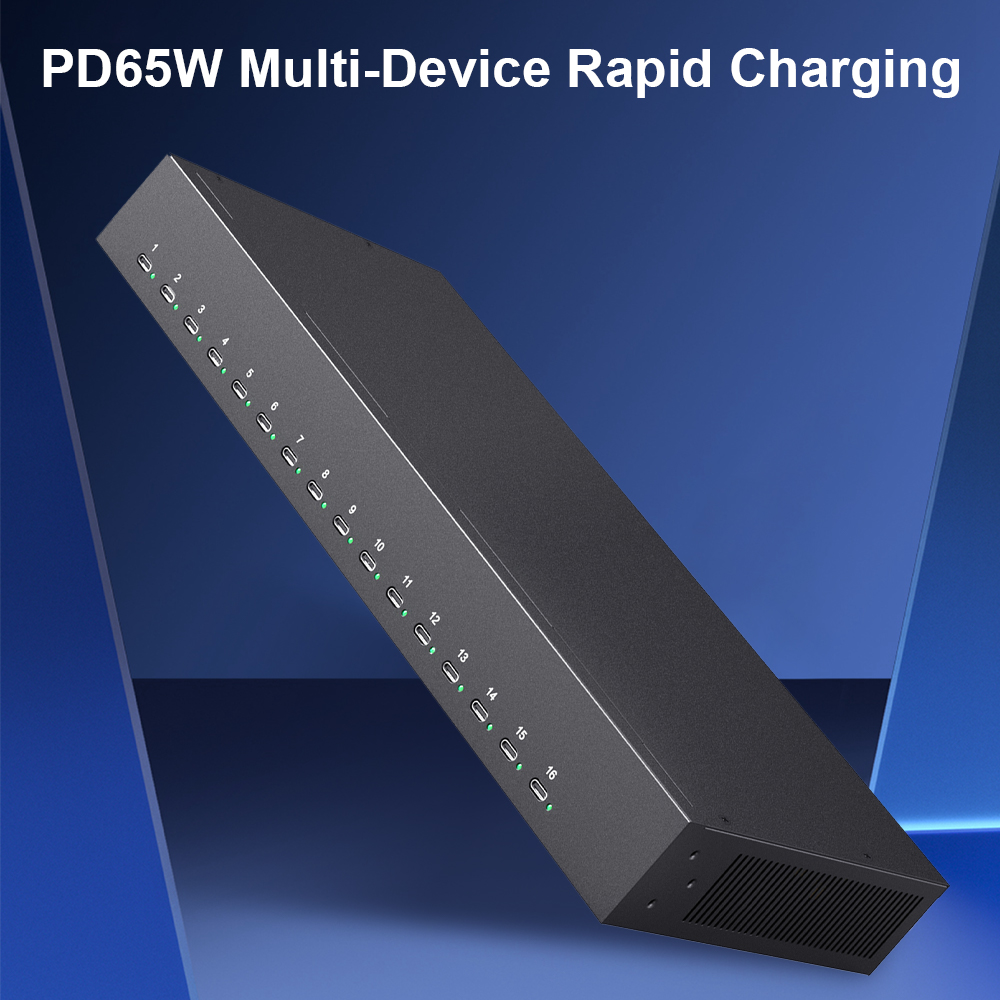

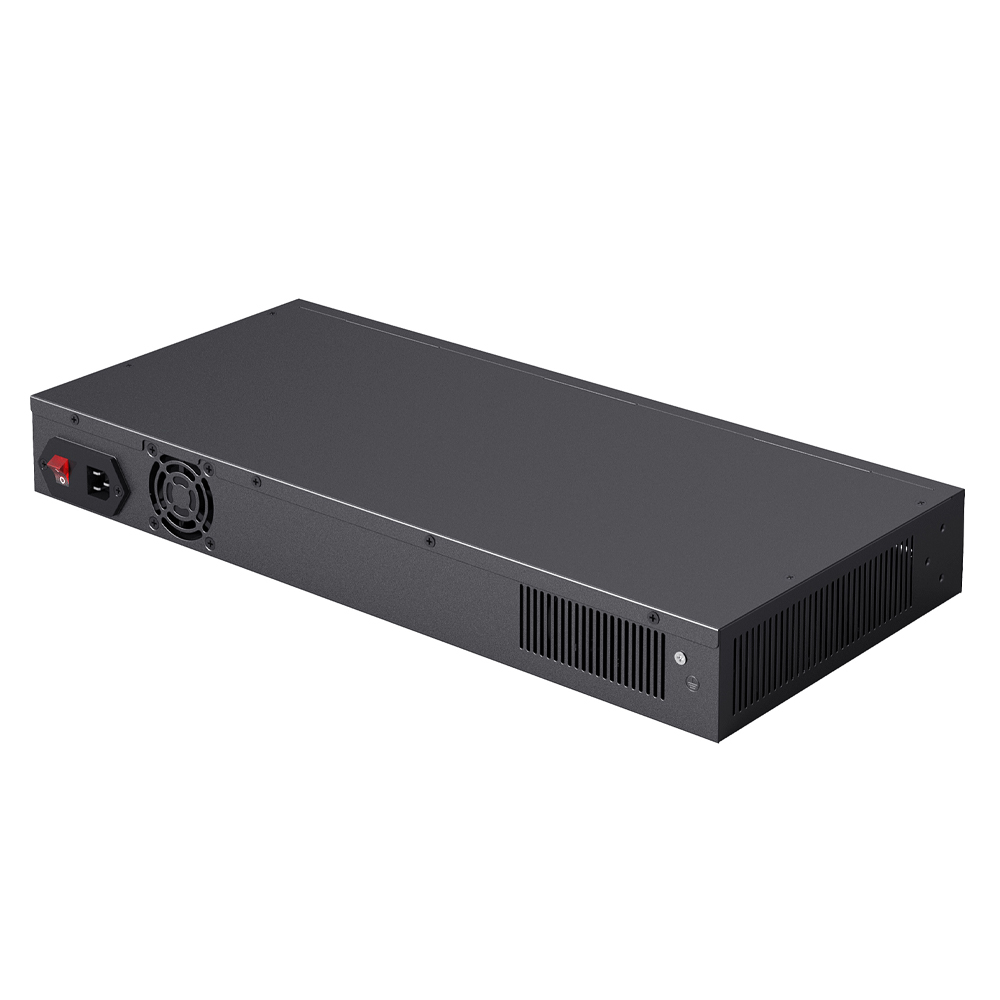

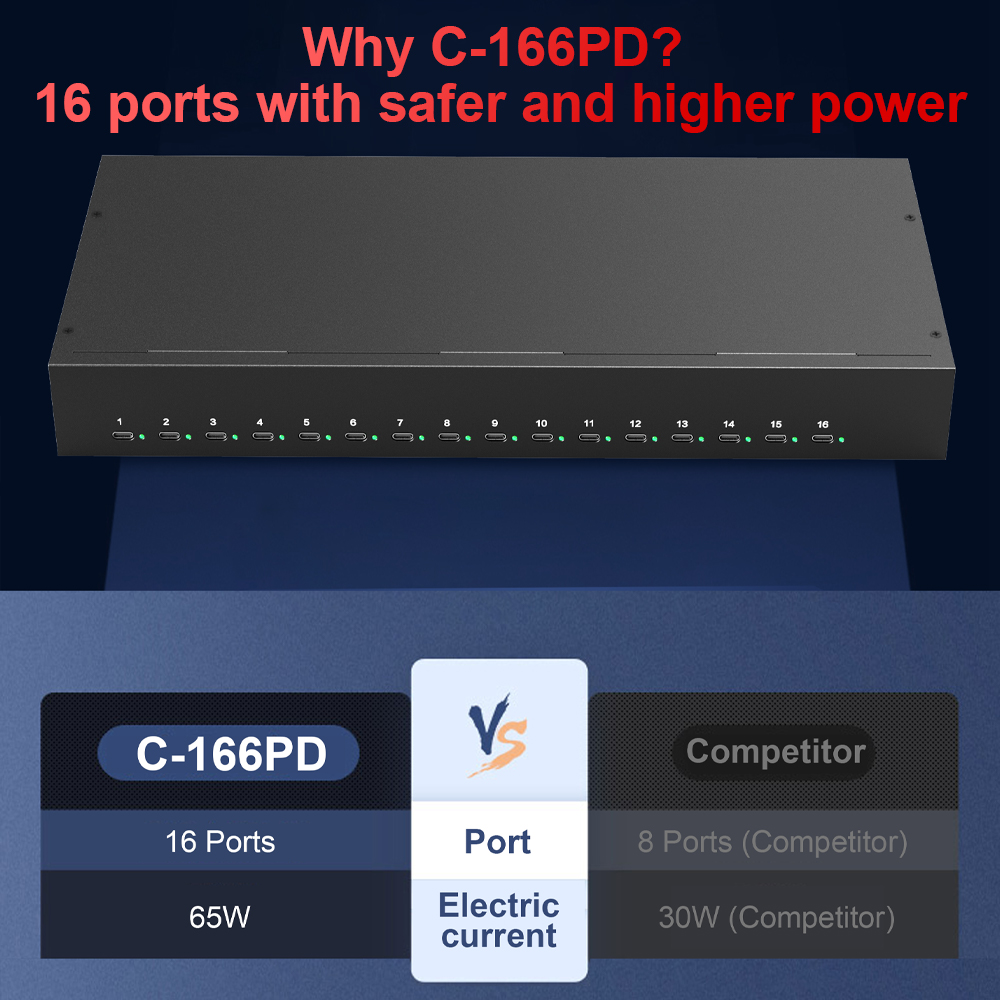

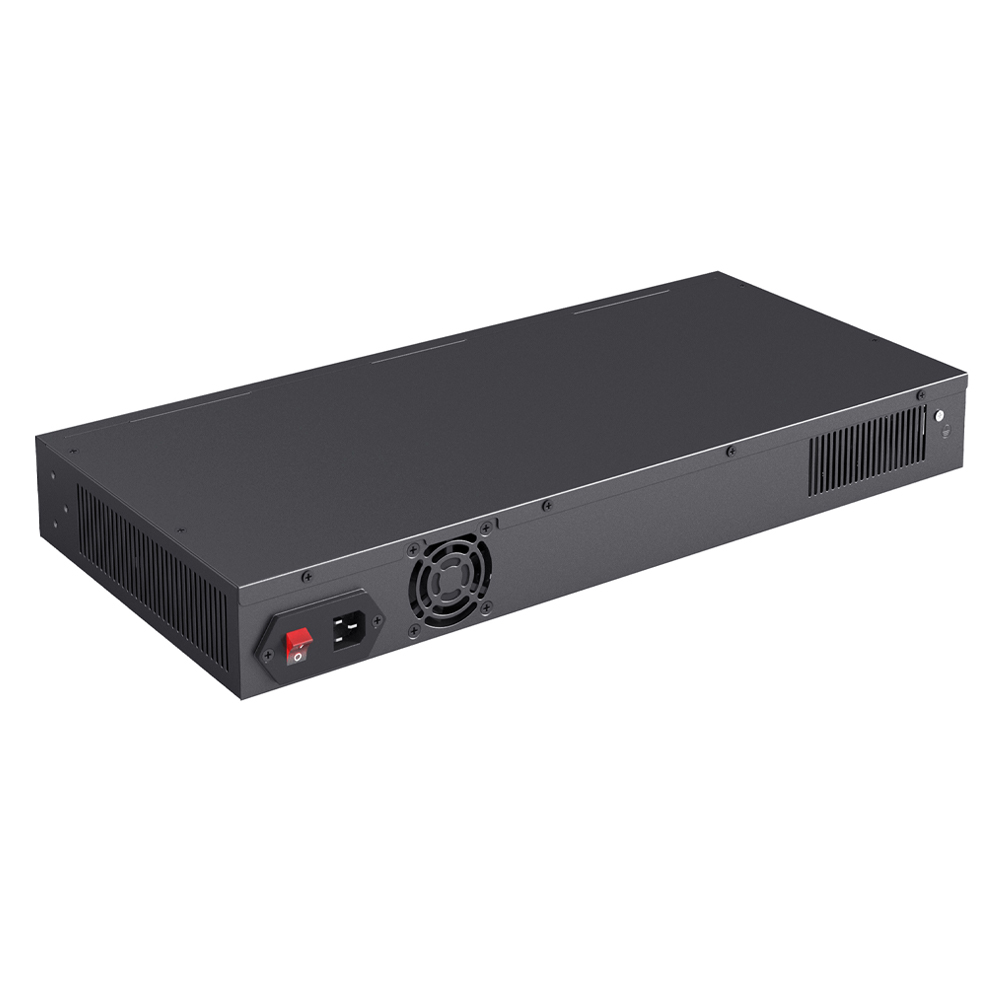

The C-166PD is equipped with 16 Type-C ports and supports various fast charging protocols such as PD/QC. The maximum output of a single port is 65W. The casing is made of sturdy cold-rolled steel, with ventilation holes and an internal cooling fan,ensuring strong heat dissipation. It is also equipped with a
charging status indicator light, making the charging status clear at a glance.
Feature
*SIZE:440*204*55MM (+/-1mm)
*Built-in 24V 1008W switching power supply.

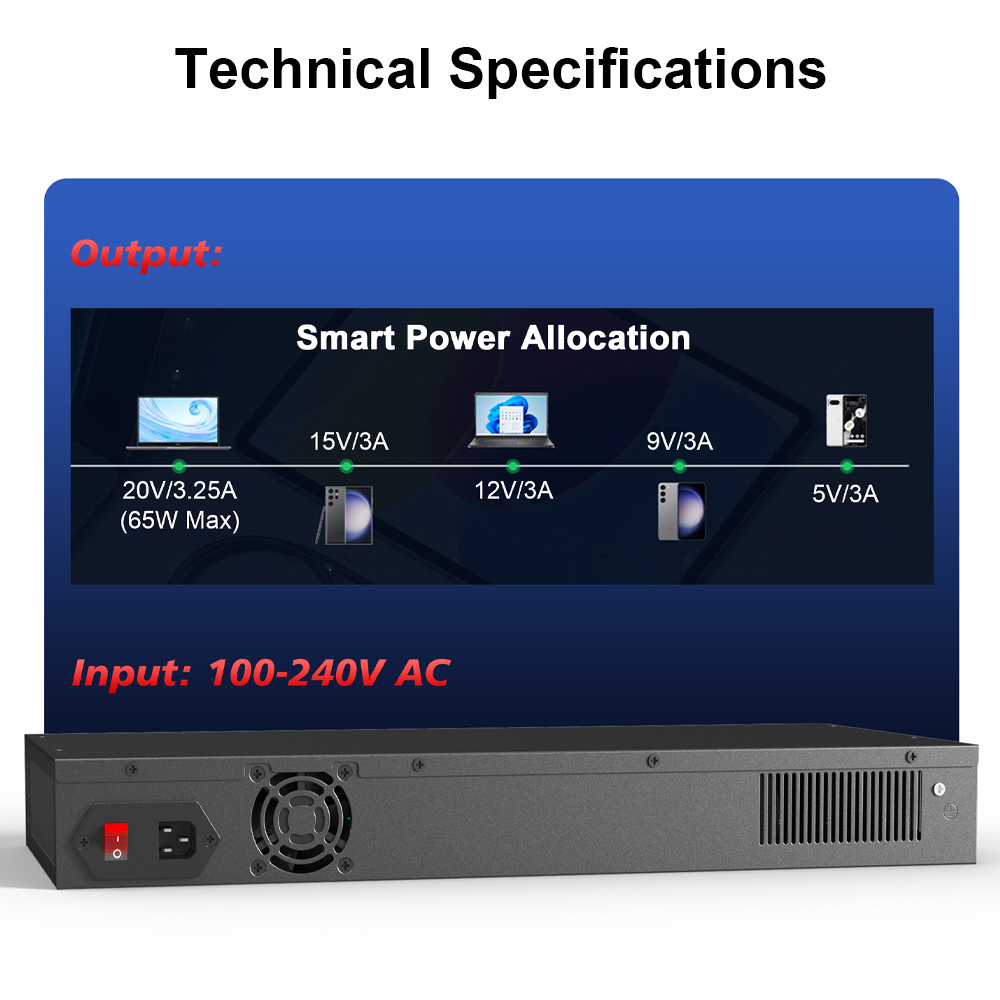

*PD output profiles include:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A

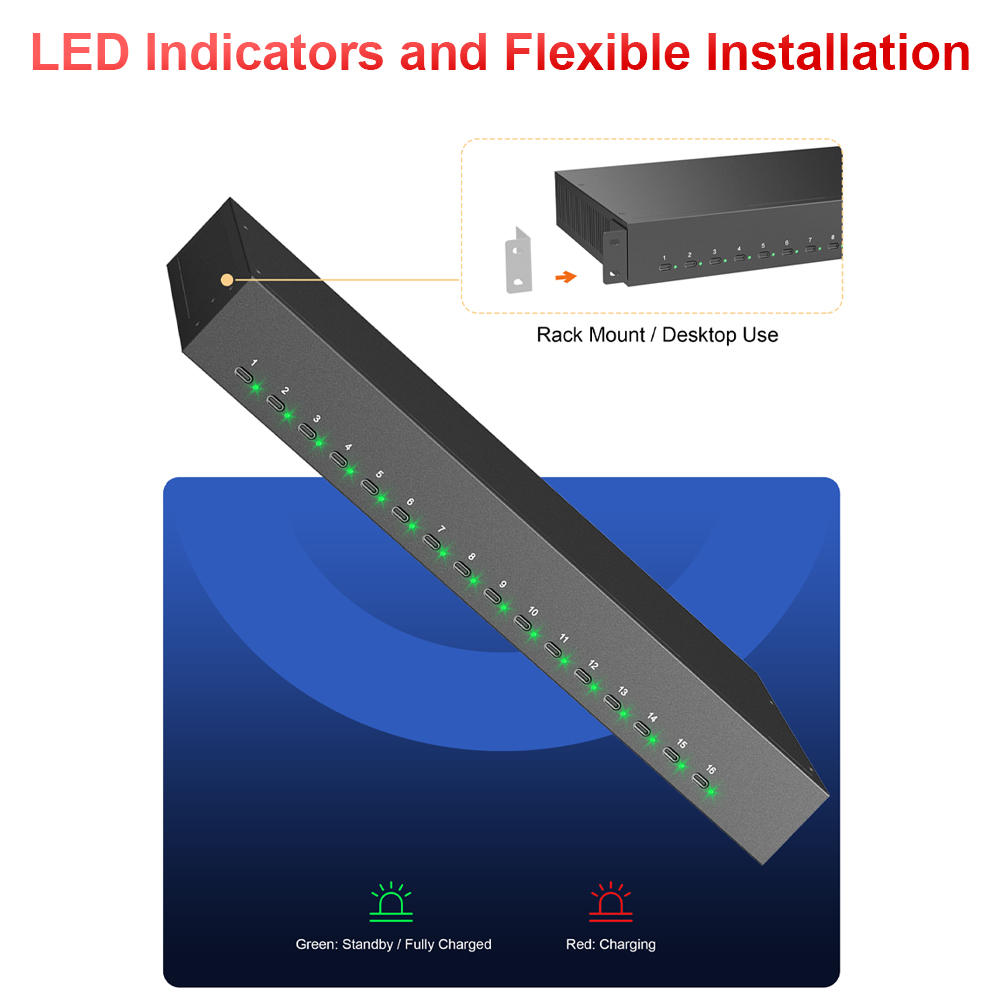

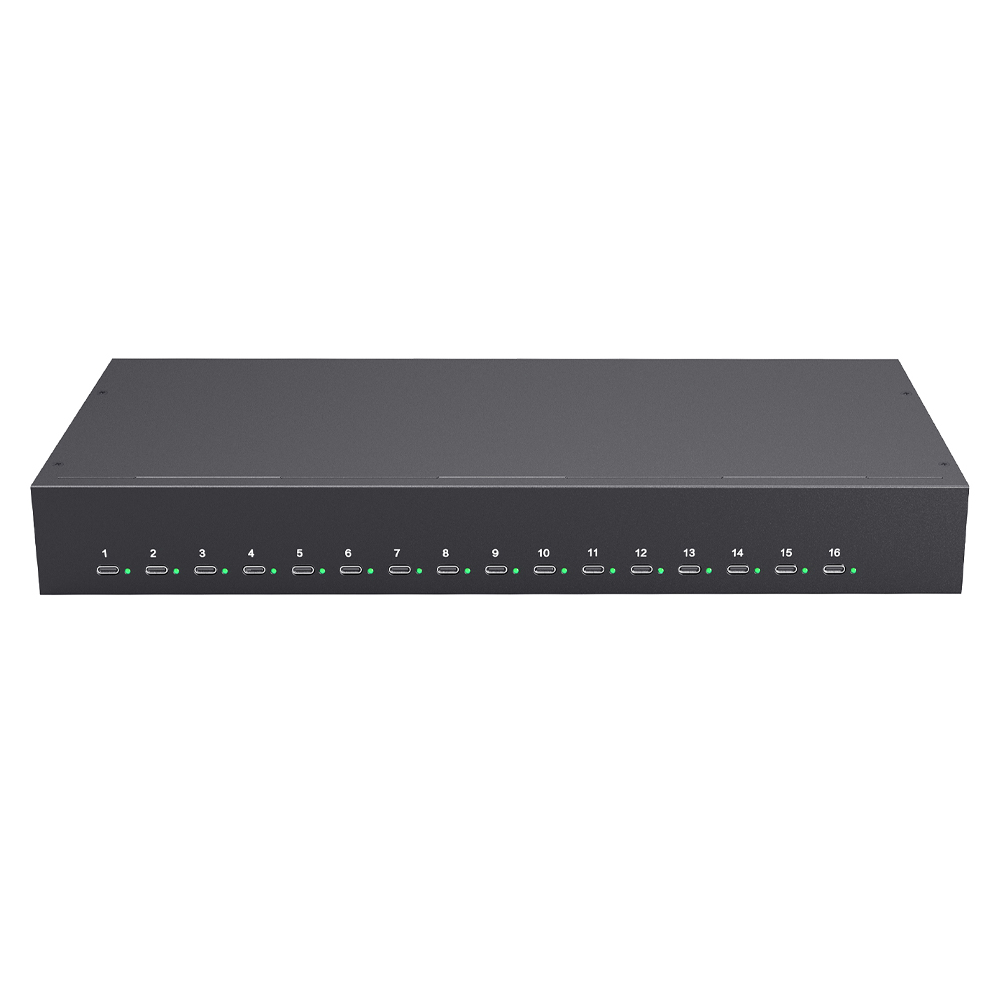

* LED indicators: Intelligently detects the power current of each port and enables the port’s LED to
illuminate its corresponding color. (Charging in progress: red; Power On or Fully charged: green)
*High-Power Fast Charging Features
Supports BC1.2, Apple, Samsung
Support PD2.0,PD3.0
Supports (Qualcomm)QC5/QC4+/QC3+/QC3.0/QC2.0
Supports MTK PE+1.1 and MTK PE+2.0
Supports Huawel fast charge: FCP，SCP，SFCP
Supports Samsung fast charge: AFC
*Protection and Reliability for: Over-voltage, input under voltage, output short circuit, output over current, system over temperature.
* Certified Safe: CE,FCC,ROHS, certification ensure complete protection for you and your devices. Worldwide the input range is AC100–240V.
Package includes:
1.16 Ports 1008W USB-C Charger*1
3.Hanging ear *2
Output |
| ||
Output PD Specification | 1.Support Type-C PD Port Output | ||
| 2.Support BC1.2_DCP、Apple Protocol | |||
| 3.Support Qualcomm QC5,QC4,QC3,QC2.0、QC3.0 | |||
| 4.Support Huawei Fast Charging Protocol FCP,TFCP,SCP,SFCP | |||
5.Support Samsung Fast Charging Protocol AFC | |||
LED Charge Mode | Charging in progress: Red Color x 16 Power on or Fully charged: Green Color x 16 | ||
Output Over current Protection | Output Over current Protection:Output＞3.5~3.9A，USB port current output automatic disconnect | ||
Operating Temperature | -10+80℃ | ||
Working Humidity | -30+80℃ | ||
R10% – RH95% | R10% – RH95% | ||
