What are the main functions of PDUs?

The power distribution unit (PDU) for cabinet special power sockets has many advantages, such as good safety quality, large load capacity, various socket systems, complete protection functions, flexible control functions, and easy use.





1.Multiple circuit protection function

(1) Surge protection: maximum impulse current: 20KA or higher.

(2) Limit voltage: ≤500V or lower, through professional testing, can be used as equipment end fine surge protection.

(3) Alarm protection: with LED digital current display and alarm function of the whole current monitoring.

(4) Filter protection: with fine filter protection, the output of ultra-stable pure power supply.

(5) overload protection: provides overload protection at both poles, which can effectively prevent problems caused by overload.

(6) Anti-misoperation: The PDU main control switch ON/OFF is equipped with a protection grid to prevent accidental shutdown.





2.Interface compatibility

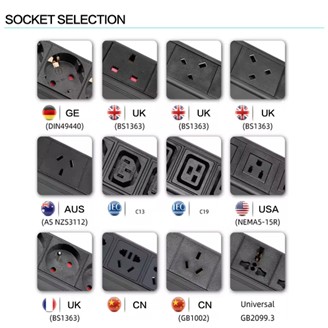

The world’s standard power socket module can meet the different needs of multinational customers, such as multi-purpose output jack and IEC output socket.

(1) Two-way input, IEC socket input, product front panel input, product rear input, product end input and other forms can be achieved.

(2) With a variety of specifications of national standard, British standard, German standard, American standard, etc.

(3) Optional 10A, 16A and industrial coupler and other specifications of the plug.



3.Rack installation

PDU power sockets can be directly installed in a 19-inch standard cabinet or rack, occupying only 1U of cabinet space. It supports horizontal installation (standard 19 inches), vertical installation (parallel to the cabinet column), and other applications.





At least two screws are needed to secure the PDU. Adjust the PDU by 180° as required. Equipped with a special L-shaped bend plate, the PDU can be adjusted by 90°.

In summary, as a special power socket for the cabinet, the PDU has many advantages, such as good safety quality, large bearing power, various types of socket systems, complete protection functions, flexible control functions, and easy to use.
